Turbocharger actuator tester VNTT-PRO V4 (USB)
What is the purpose of the VNTT-PRO?

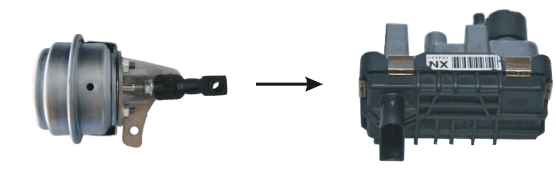

VNTT-PRO tester is designed to perform diagnosis of actuators (electric valves, DC motors) of VNT (Variable Nozzle Turbine) turbochargers. These actuators changes position of turbocharger vanes in the same way as in turbochargers where turbine geometry was changed using vacuum.

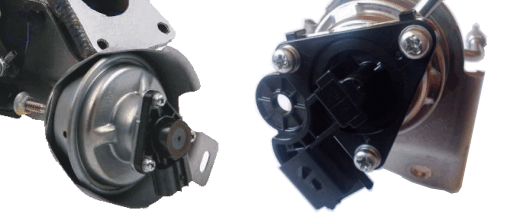

Apart from testing electronic turbocharger units VNTT-PRO tester can be used to check variable geometry position sensors. These are found in turbines that use vacuum or pressure controlled pneumatic valve to change geometry position. They enable readout of variable geometry vanes opening percentage.
The tester is also able to diagnose boost pressure valve operation.
The tester is also able to diagnose boost pressure valve operation.
VNTT-PRO tester may be helpful in adjusting operating range of variable geometry.
What kind of position sensors can be checked with VNTT-PRO?
VNTT-PRO device allows you to check potentiometric sensors and inductive sensors (Hall) manufactured by:
1. Honeywell
Used among others in
Audi A3, Golf VI, VW Passat, VW Polo with 1.6TDI 105KM, Octavia II 2.0TDI 170KM
2. BorgWarner
Used among others in
Audi A3 2.0TDI 140KM, Audi A4 2.0TDI 170KM, AlfaRomeo MiTo 1.3 MultiJet
3. Mellet
Used among others in
Citroen C4, C5 II 2.0Hdi 136KM, Peugeot 307, 308, 407, 607 2.0Hdi 136KM
Which turbocharger actuators are supported by VNTT-PRO tester?
The device supports actuators manufactured by HELLA, SIEMENS, MITSUBISHI, SONCEBOZ, DENSO, MAHLE. The range covers significant part of the actuators currently used in automotive industry.
1. HELLA actuators
The tester supports turbocharger actuators part number:
6NW 008 091
6NW 008 412
6NW 009 206
6NW 009 228
6NW 009 420
6NW 009 483
6NW 009 543
6NW 009 550
6NW 009 660
6NW 010 099-01
6NW 010 099-02
6NW 010 430-01
6NW 010 430-03
6NW 010 430-04

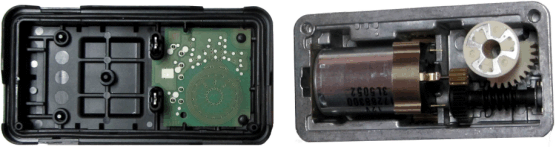

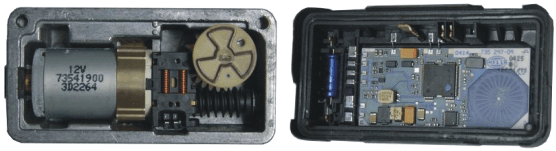

The appearance of the HELLA turbo actuator:

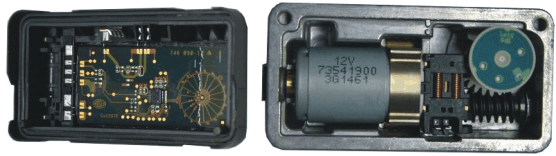

Most of HELLA actuators found in the market are so-called actuators 'with electronics' because they have separate DC motor controller for lever adjustment integrated in the unit. They are used in cars including Mercedes, Ford 1.8 TDCI, 2.0 TDCI, BMW 2.0, Jeep Cherokee 3.0 CRD, VW Touareg 5.0 TDI V10, Nissan Navarra 2.5.

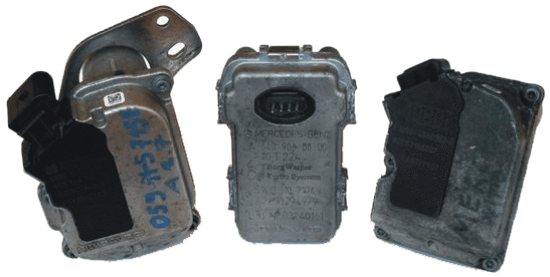

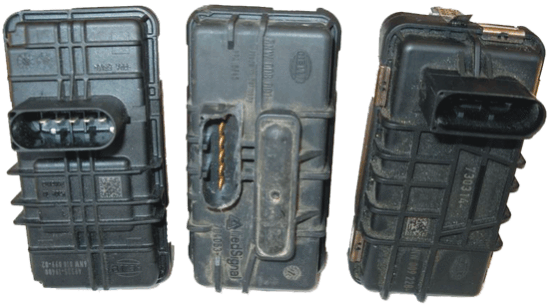

The following image shows their appearance.
6NW 008 412
6NW 009 660
6NW 008 091
6NW 010 099

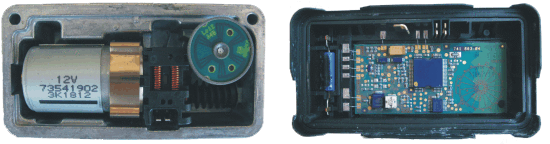

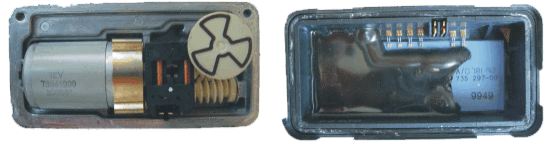

There is a second type of HELLA actuators, called 'without electronics' because they have no integrated DC motor driver, as this is performed by the ECU. They are used among others in: Audi/VW 2.7 TDI oraz 3.0 TDI, Ford 2.4, BMW X3 2.0.

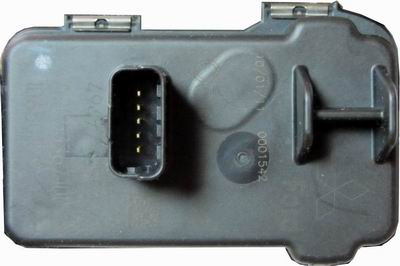

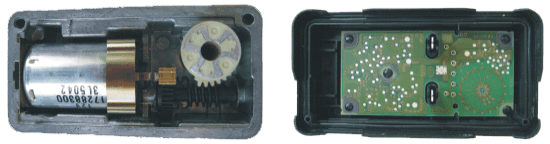

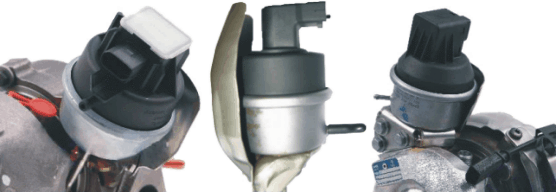

The following picture shows exterior view of these units:
6NW 009 206
6NW 010 430-01
2. SIEMENS actuators
The tester supports all turbocharger actuators manufactured by SIEMENS. These are used among others in Audi/VW 2.7 TDI and 3.0 TDI, Mercedes, BMW.

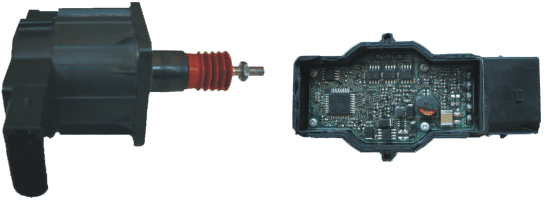

The image below shows appearance of typical SIEMENS actuator.
3. MITSUBISHI actuators
This tester supports all MITSUBISHI actuators. These are used among others in BMW 320d, Ford 2.2 TDCI and in PSA Group cars with 2.HDI.

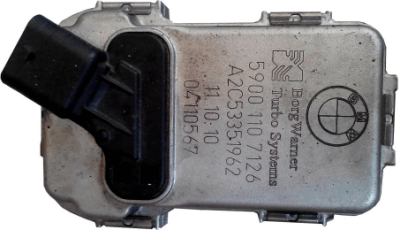

The image below shows appearance of exemplary MITSUBISHI actuators.
Actuator for BMW
Actuator for Ford/PSA
4. SONCEBOZ actuators
Device supports turbo actuators manufactured by SONCEBOZ. These can be found among others in LandRover and Mercedes.
The image below shows appearance of typical SONCEBOZ actuator.
5. DENSO actuators
This device supports turbo actuators manufactured by DENSO. This actuators can be found among others in Toyota 1.4 D-4D and 3.0 D-4D.

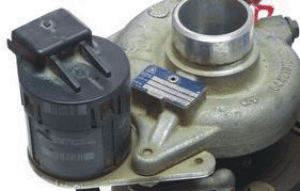

The appearance of exemplary DENSO actuators:

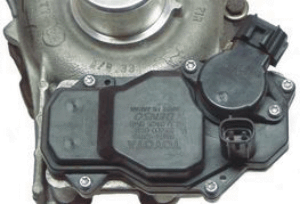

Actuator for Toyota 1.4 D-4D

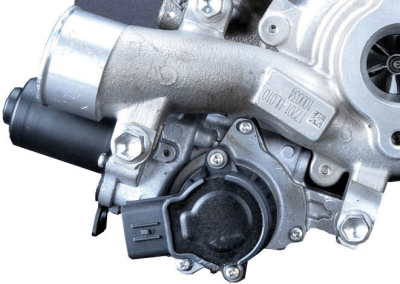

Actuator for Toyota 3.0 D-4D
6. MAHLE actuators
The tester supports MAHLE turbo actuators. These can be found among others in VW, Skoda with 1.2 TSI engine.

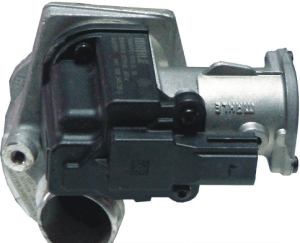

The appearance of typical MAHLE turbo actuator is shown below.
From what time and in which brands are turbocharger actuators used?
Turbochargers with actuators were introduced in 2003 and since then they are widely used in car makes such as Audi, VW, Mercedes, BMW, Ford, Jaguar, Jeep, Chrysler and others
What can I check with VNTT-PRO device?
VNTT-PRO device allows you to check:
- uniformity of actuator lever movement,
- lever tractive resistance,
- range of actuator lever movement,
- mechanical parts as well as actuator electronics,
- DC motor used in turbo actuators to change lever position,
- correctness of variable geometry range adjustment,
- correctness of variable geometry position sensor operation,
- correctness of internal temperature sensor operation (only certain Hella units),

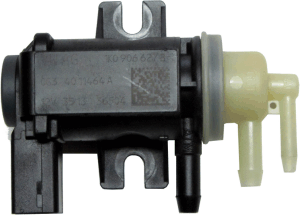

- vacuum solenoid valve controlling turbo actuator.
In case of Hella and Siemens turbo actuator, the tester can also identify the actuator, determining from which car manufacturer comes tested unit. As turbocharger manufacturers state, the actuator is an integral part of turbine and therefore it cannot be repaired or replaced without replacing the entire turbine unit. With VNTT-PRO tester it is possible to determine, sometimes simple cause of turbocharger failure and then the user may try to repair it.
Who should use VNTT-PRO tester?
VNTT-PRO tester can be successfully used in businesses involved in regeneration of turbochargers as well as in car garages offering wide range of repairs in order to diagnose the cause of turbocharger malfunction.
Are original actuators connectors included?
Device includes original connectors for: HELLA, SIEMENS,MITSUBISHI (for BMW),SONCEBOZ and MAHLE turbo actuators.
For DENSO and MITSUBISHI (for Ford/FSA) actuators there is a cable included with universal terminals.
All connection cables for variable geometry position sensor are ended with original connectors.
What kind of power supply is required?
VNTT-PRO tester can be powered from a DC supply with 12.. 15V output. The power supply should have current capability of minimum 4A.
The device is supplied with a dedicated DC power supply.
Is online upgrade possible?
Yes. Simply connect the tester to the USB port of any PC computer or laptop that has Internet access and run Updater software (CD-ROM included). Details on update process available in User Manual.
Video tutorials on the online upgrade are available at: VNTT-PRO upgrade
What is included in the VNTT-PRO box?
Contents of VNTT-PRO kit:

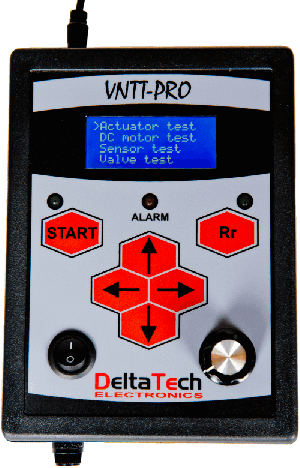

- VNTT-PRO tester

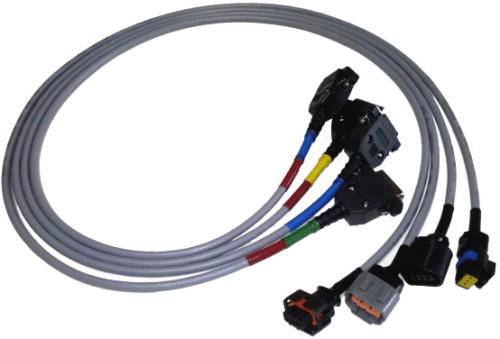

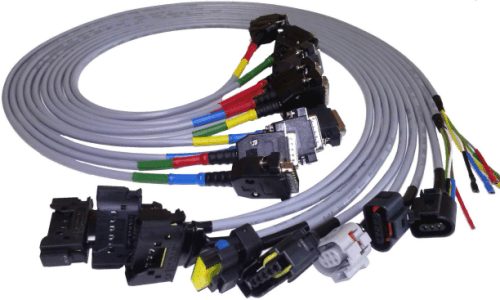

- HELLA connection cable (6NW 008 091, 6NW 008 412, 6NW 009 228, 6NW 009 420, 6NW 009 543, 6NW 009 660, 6NW 010 099-01)
- HELLA connection cable (6NW 009 206, 6NW 009 550, 6NW 009 483, 6NW 010 430-01, 6NW 010 430-03, 6NW 010 430-04)
- HELLA connection cable (6NW 010 099-02)
-
MITSUBISHI connection cable for BMW
- SIEMENS connection cable for VW/Audi
- SIEMENS connection cable for Mercedes and BMW
- SONCEBOZ connection cable
- MAHLE connection cable
- geometry position sensor connection cable for VW/Audi
- geometry position sensor connection cable for Opel, Fiat, Alfa Romeo
- geometry position sensor connection cable for Citroen, Peugeot.
- geometry position sensor connection cable for Ford
- universal connection cable for:
- DENSO turbo actuators,
- MITSUBISHI actuators for Ford/PSA
- DC motors
- geometry position sensors - DC power supply
- USB cable for firmware update
- CD-ROM with Updater tool
- User Manual
Where can I see how the tester works?
Tester actual working can be found here: VNTT-PRO films
